Steps to integrate eShipz connector in Unicommerce

Steps to integrate eShipz connector in Unicommerce

This guide provides the necessary steps to set up eShipz as a shipping provider within your Unicommerce (Uniware) account. This integration is essential for automating AWB generation, label printing, and tracking for orders processed through Uniware.
Prerequisites
  1. An active eShipz account with your courier partners already integrated.
  2. Your eShipz API credentials (User Name and Password), which are provided by the eShipz team.
  3. An active Unicommerce (Uniware) account.
Step 1: Add eShipz as a Shipping Provider in Uniware
  1. Log in to your Uniware account.

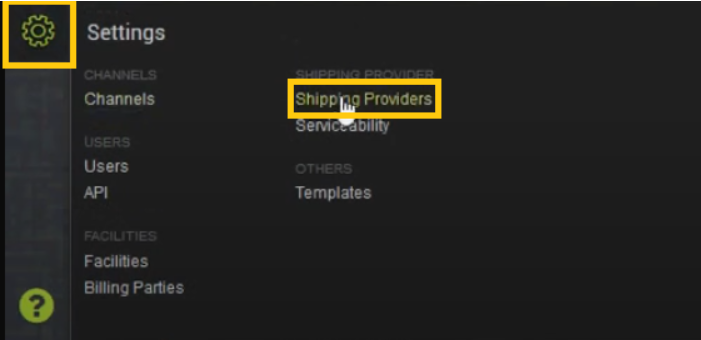

  2. Navigate to Settings → Shipping Providers (or Shipping → Shipping Providers).

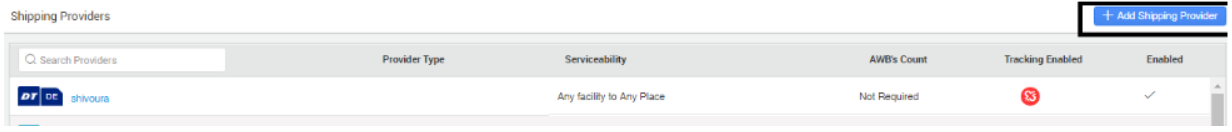

     3. Click on the "Add Shipping Provider" button.

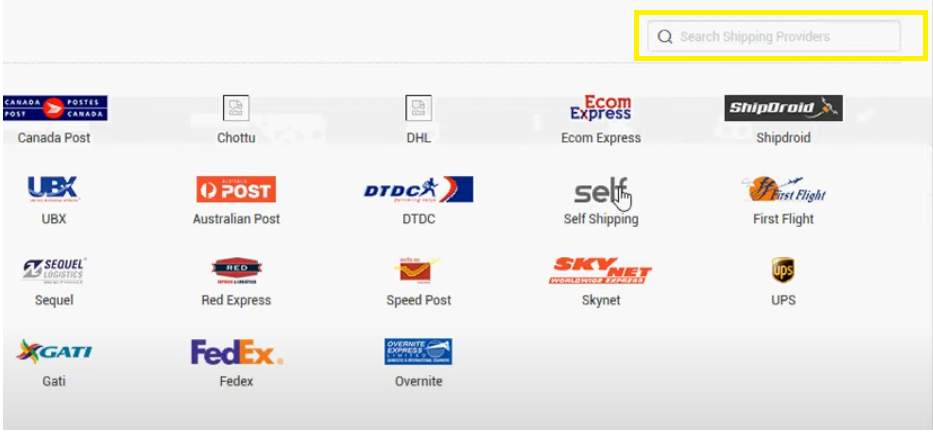

    4. Search for "eShipz" (or "eShipz (LOGIQ LABS)") and click to select it.

Step 2: Fill in General Information and Credentials

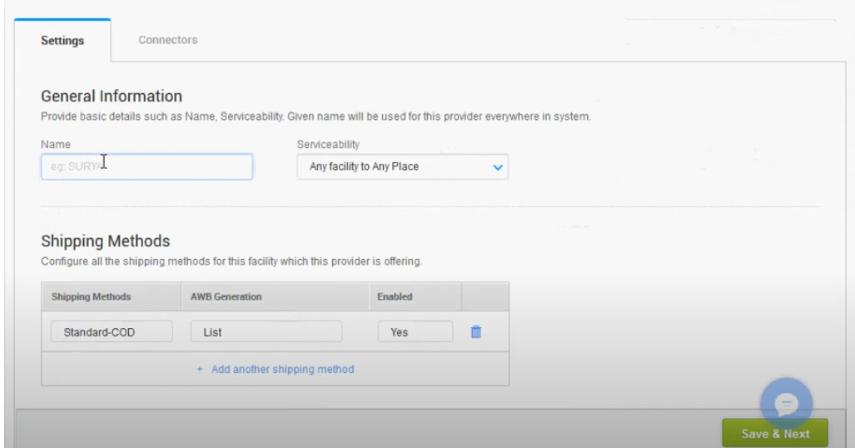

You will be presented with a configuration screen where you need to input the necessary details for the integration.

Field
Setting / ValueDescription
Shipping Provider NameEnter a recognizable name (e.g., "eShipz Automation")This is how the provider will appear in your Uniware system.
EnabledYesMarks the shipping provider as active.
Tracking EnabledYesSet to 'Yes' as eShipz provides tracking information back to Uniware.
Enabled for PickupYesAllows Uniware to select eShipz for order pickups.
Auto Create PincodeYesSet to 'Yes' for serviceability mapping.



Step 3: Configure Serviceability and Shipping Methods

This section tells Uniware how to use eShipz for both forwarding and reverse logistics.

  1. Serviceability:

    • Set Serviceability to "Any Facility to Any Place" (recommended for broad use). Alternatively, you can define specific Pincode serviceability if needed.

  2. Forward Shipment Methods:

    • Click "Add Shipping Method" for Forward Shipments.

    • Create two separate shipping methods: Prepaid and COD (Cash on Delivery).

    • For AWB Generation, select "API" for both methods. This ensures the AWB number is fetched directly from eShipz.

  3. Reverse Shipment Methods (Optional):

    • If you handle returns, click "Add Shipping Method" for Reverse Shipments.

    • Create a method for ReversePickup-Prepaid.

    • Set AWB Generation to "API".

Step 4: Now save the detail by pressing button Save and Next.

Step 5: Click on Connectors and update the credentials for API settings, will be provided by the Eshipz team for every seller.

Note:  Add this under Service type: slug|vendor id|service type|p,slug|vendor id|service type|c (Slug, vendor id and service type of the customer-configured carrier.)

Parameters Values/Descriptions
User NameThe credentials will be provided by eShipz team
Service TypeThe details will be provided by eShipz team
PasswordThe credentials will be provided by eShipz team
Hand Over Mode -
Pickup Address Id -
Fetch Label Link -
API Url-
Integrated shipping providers will now appear in the table.
Settings > Shipping Providers.

Below are the feature highlights of this integration:
  1. Forward and Reverse shipment supported.
  2. AWB will be fetched from eShipz.
  3. Label format will be provided by eShipz.
  4. Manifest format will be provided by eShipz.
  5. Tracking is provided in Uniware for eShipz shipped orders.

Note: As of now, Unicommerce does not support the CSB-V functionality through the Blue Dart API (ESHIPZ) integration.
However they do have support through the DHL Integration. For more information, please refer to the DHL integration documentation: https://support.unicommerce.com/index.php/knowledge-base/integration-with-dhl/
