Steps to Integrate Unicommerce

Scope:

This document covers the standard operating procedures for using the eShipz Smart Dashboard to manage logistics operations, including carrier integration.

Purpose:

The purpose of this document is to guide users through the complete setup and operational workflow of the eShipz Smart Dashboard, ensuring efficient logistics management from a single platform.

Procedure and Steps

1. Login to the Dashboard

Purpose: To access the dashboard and begin using eShipz features.

Steps:

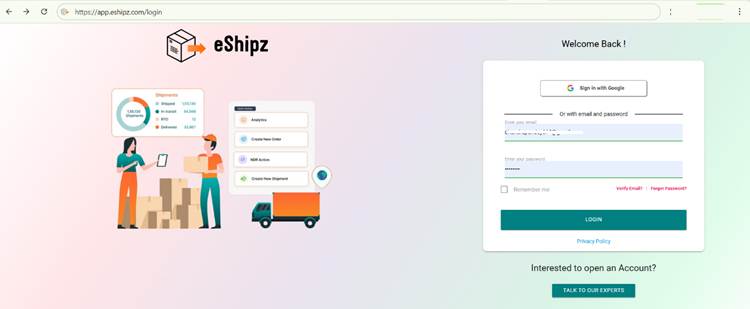

1. Go to the eShipz Smart Dashboard login page (https://app.eshipz.com/login).

2. Enter the email address shared with you via official communication.

3. Enter the password provided in the same email.

4. Click the Login button.

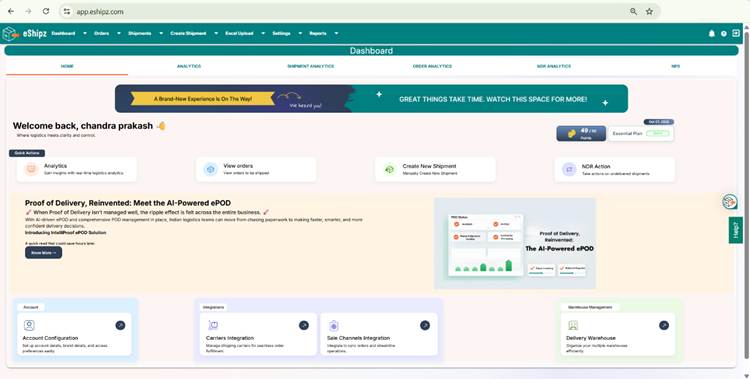

1. Once logged in, you will be able to view the main dashboard containing order, shipment metrics, and reports.


2. Add a Contracted Carrier Partner

Purpose: To integrate third party logistics providers for shipping operations.

Steps:

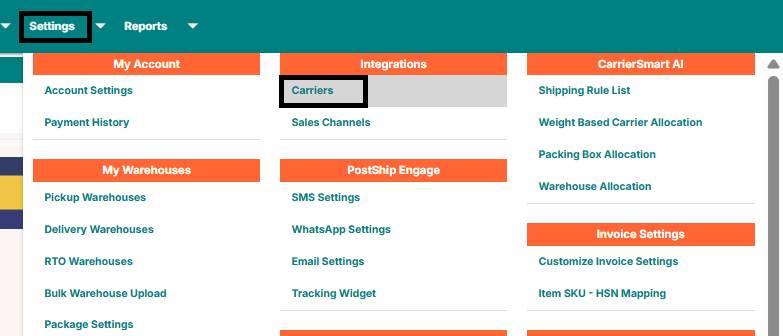

1. Click on the Settings tab.
2. Navigate to the Carriers option.

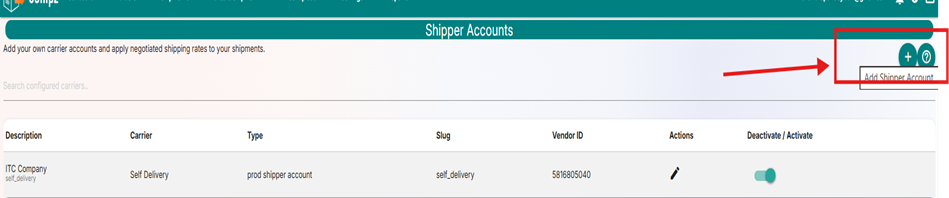

1. Click the plus icon to add a new carrier.

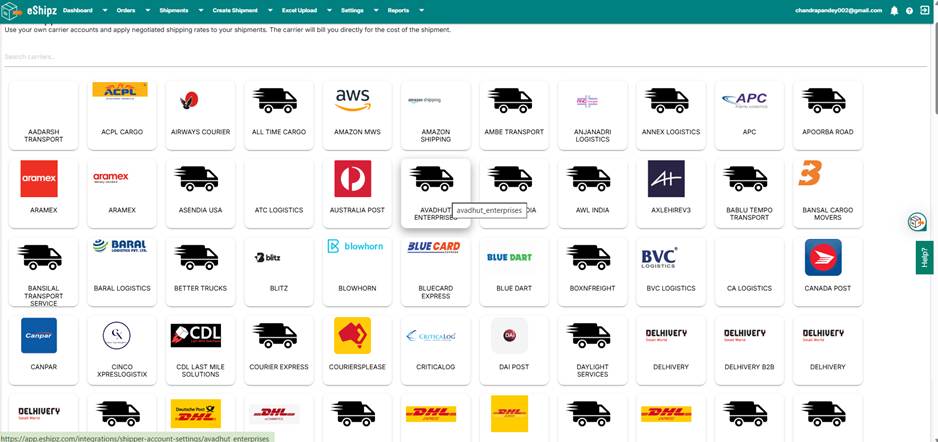

1. Select the desired carrier from the list.


1. Enter the required API credentials or authentication details.

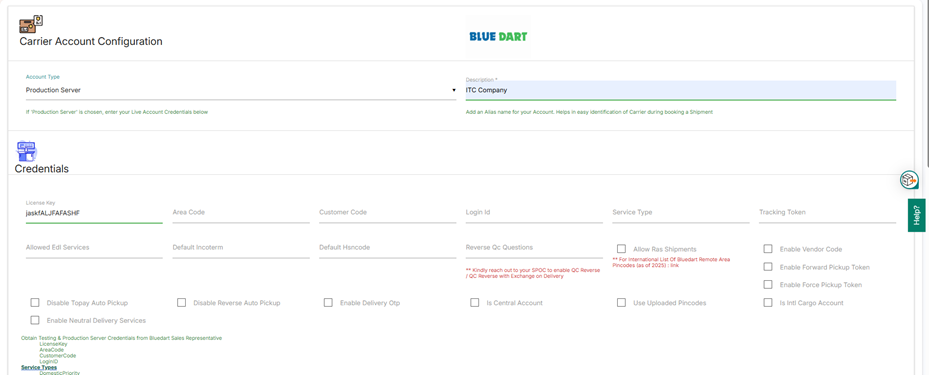

Example: Selecting Bluedart >> Credentials

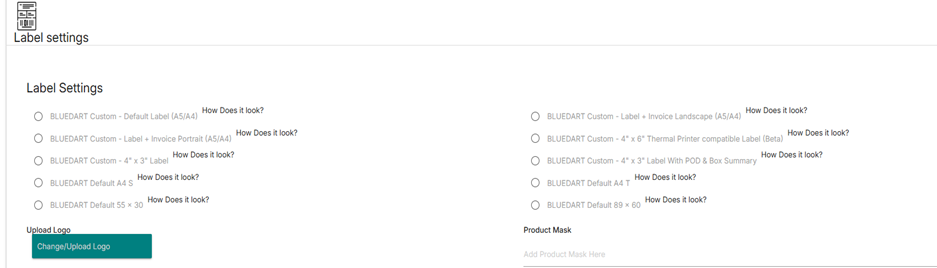

1. Choose the label type based on preference.

2. Upload your company logo.

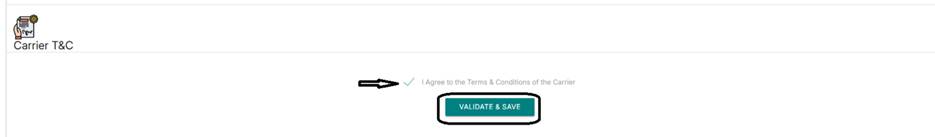

1. Agree to the terms and conditions.

2. Click Validate and then Save.


1. The carrier is now successfully added and ready for use.


3. Add and Sync Sales Channels

Purpose: To import orders from integrated sales platforms.

Steps:

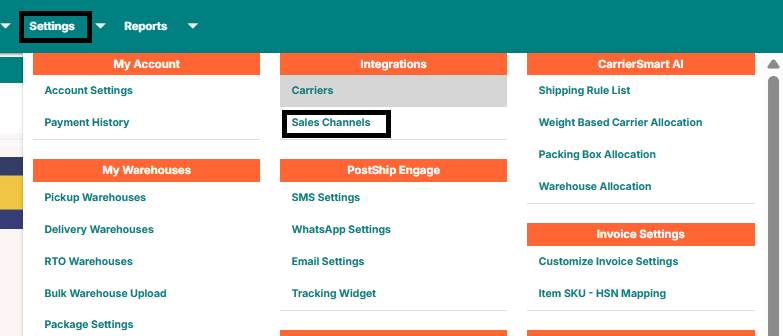

1. Click on the Settings tab.

2. Go to the Sales Channel section.


1. Select the sales channel you wish to connect.

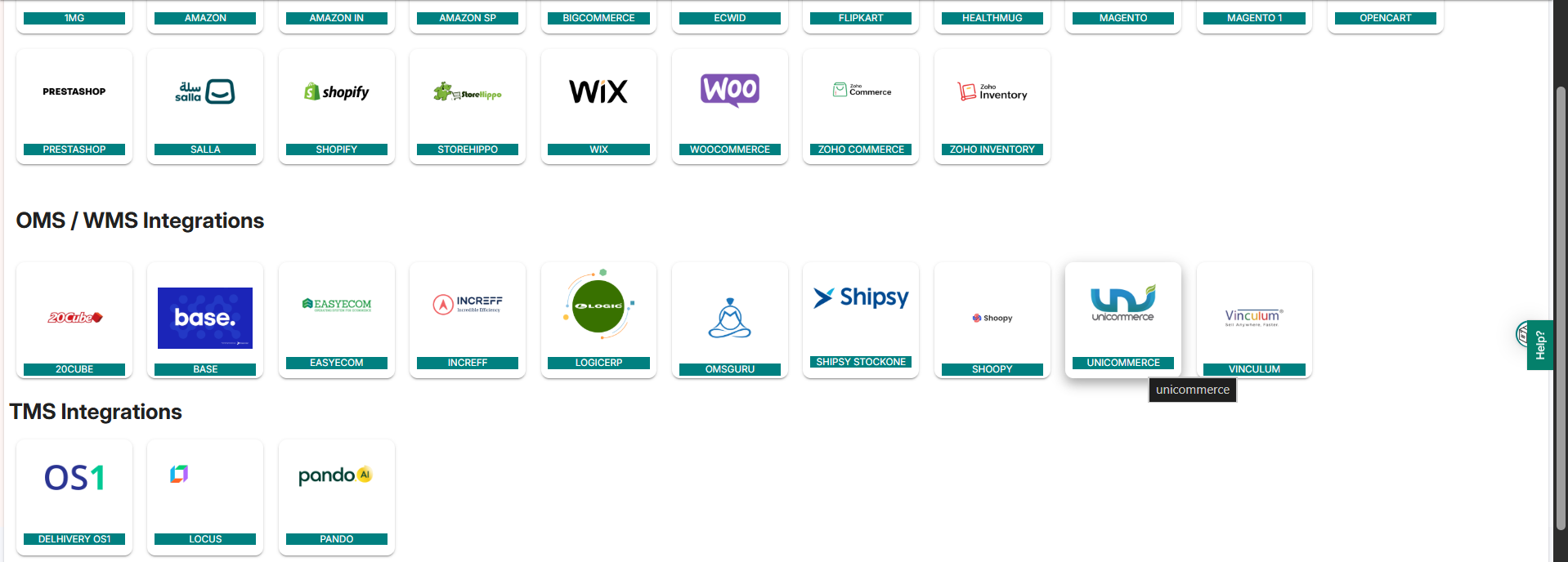

2. Selecting Unicommerce


Then go to the Unicommerce

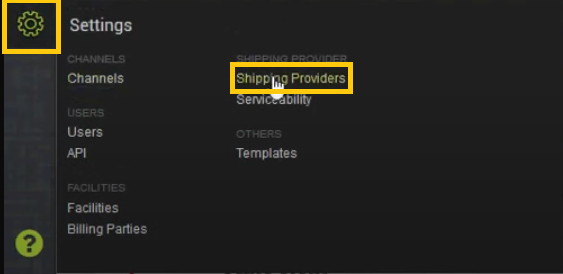

Navigate to Settings → Shipping Providers (or Shipping → Shipping Providers)

Click on the "Add Shipping Provider" button

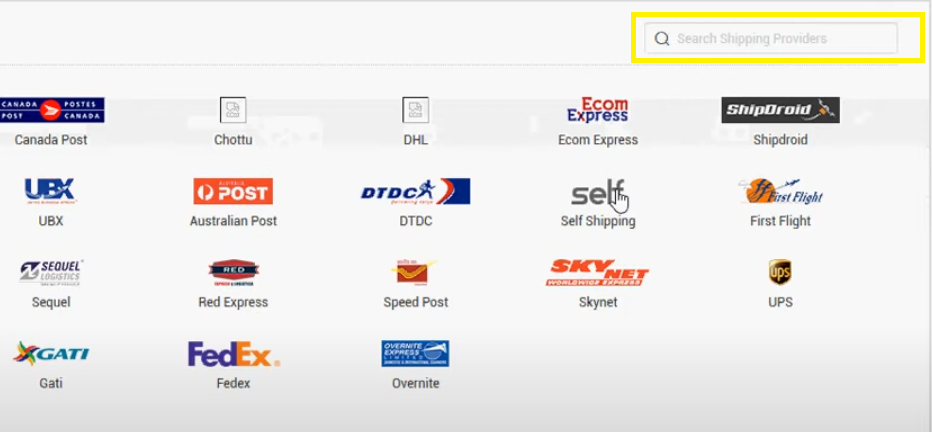

Search for "eShipz" (or "eShipz (LOGIQ LABS)") and click to select it.

Fill in General Information and Credentials

You will be presented with a configuration screen where you need to input the necessary details for the integration.

Field	Setting / Value	Description
Shipping Provider Name	Enter a recognizable name (e.g., "eShipz Automation")	This is how the provider will appear in your Uniware system.
Enabled	Yes	Marks the shipping provider as active.
Tracking Enabled	Yes	Set to 'Yes' as eShipz provides tracking information back to Uniware.
Enabled for Pickup	Yes	Allows Uniware to select eShipz for order pickups.
Auto Create Pincode	Yes	Set to 'Yes' for serviceability mapping.

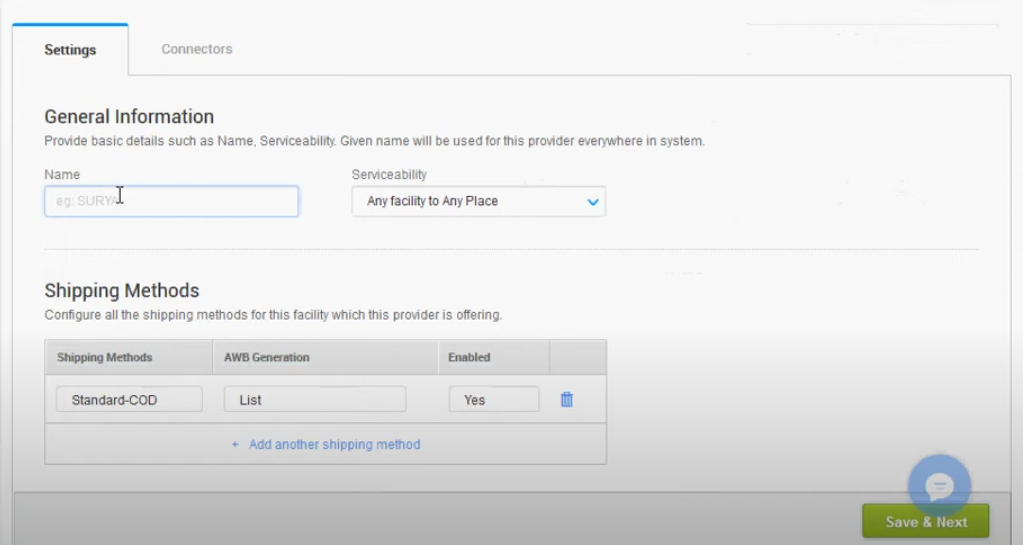

Configure Serviceability and Shipping Methods

This section tells Uniware how to use eShipz for both forwarding and reverse logistics.

Serviceability:

Set Serviceability to "Any Facility to Any Place" (recommended for broad use). Alternatively, you can define specific Pincode serviceability if needed.

Forward Shipment Methods:

Click "Add Shipping Method" for Forward Shipments.

Create two separate shipping methods: Prepaid and COD (Cash on Delivery).

For AWB Generation, select "API" for both methods. This ensures the AWB number is fetched directly from eShipz.

Reverse Shipment Methods (Optional):

If you handle returns, click "Add Shipping Method" for Reverse Shipments.

Create a method for ReversePickup-Prepaid.

Set AWB Generation to "API".

Once done save the detail by pressing button Save and Next.

Click on Connectors and update the credentials for API settings, will be provided by the Eshipz team for every seller.

Note:  Add this under Service type: slug|vendor id|service type|p,slug|vendor id|service type|c (Slug, vendor id and service type of the customer-configured carrier.)

Parameters	Values/Descriptions
User Name	The credentials will be provided by eShipz team
Service Type	The details will be provided by eShipz team
Password	The credentials will be provided by eShipz team
Hand Over Mode	-
Pickup Address Id	-
Fetch Label Link	-
API Url	-

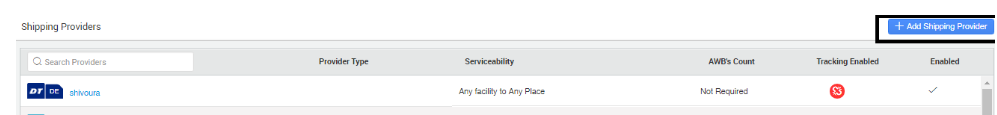

Integrated shipping providers will now appear in the table.

Settings > Shipping Providers.

Below are the feature highlights of this integration:

1. Forward and Reverse shipment supported.

2. AWB will be fetched from eShipz.

3. Label format will be provided by eShipz.

4. Manifest format will be provided by eShipz.

5. Tracking is provided in Uniware for eShipz shipped orders.


Sync and Ship Orders

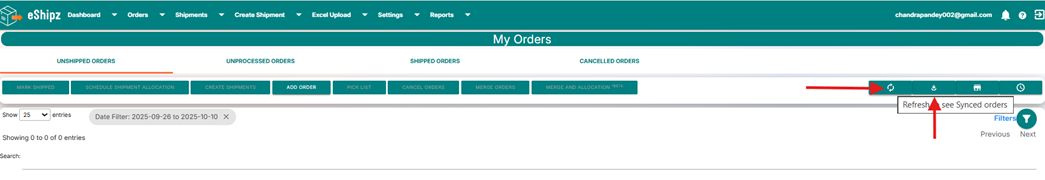

Steps: Sync your Orders:

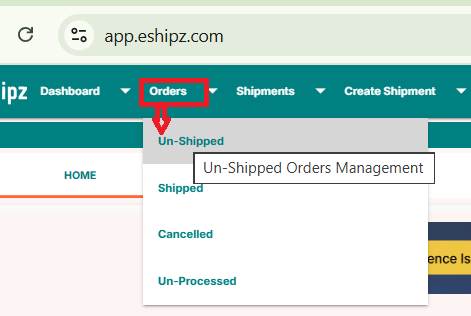

1. Navigate to the Orders tab.

2. Click on Un-shipped


1. Click the Refresh icon to sync the latest orders.

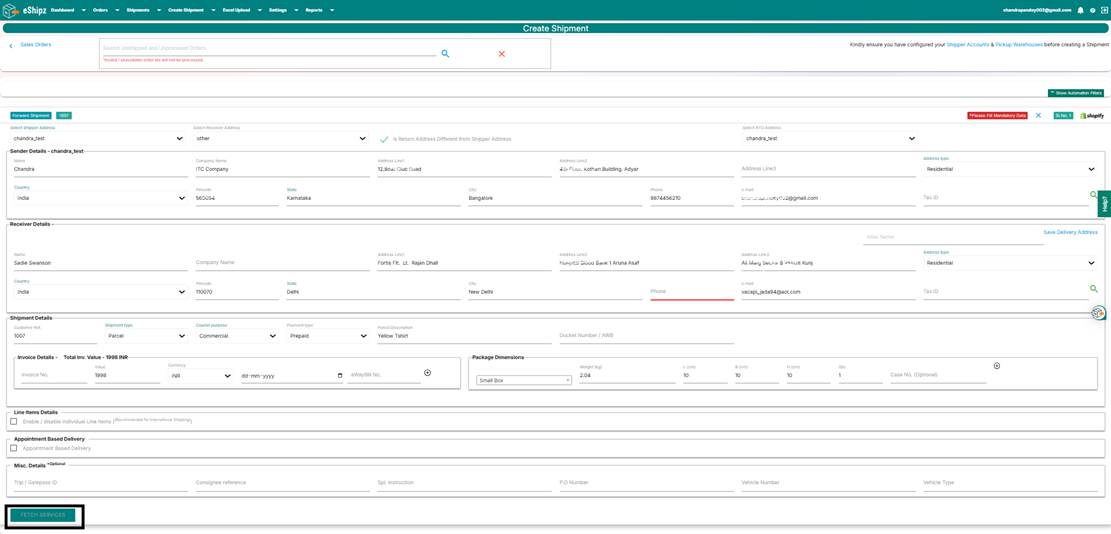

Steps to Create Shipment:

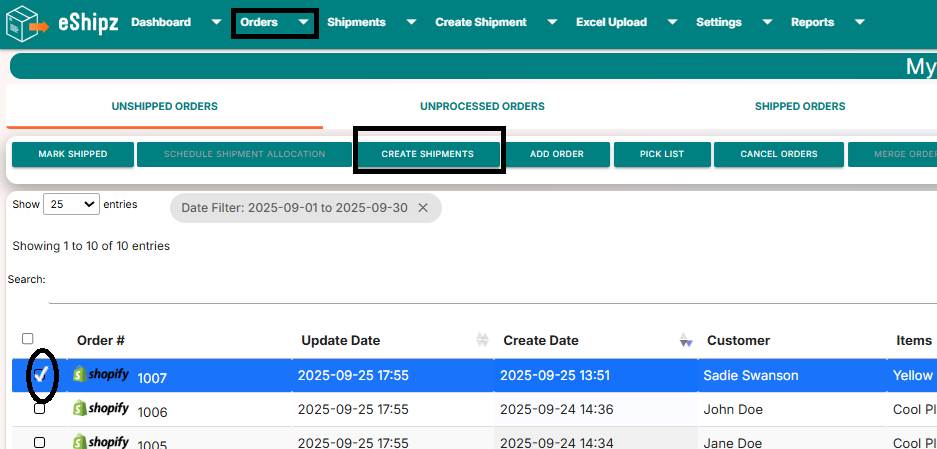

1. In the Orders tab go to Unshipped and then select the Order then click on Create Shipment.


1. Enter additional shipment details if necessary.

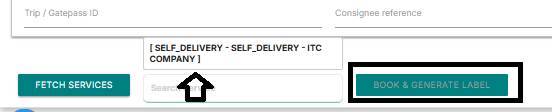

1. Click Fetch Services to retrieve shipping options.

2. Select your preferred carrier.

3. Click Book and Generate Label to confirm.


1. Once the Label generated click on Download Label.

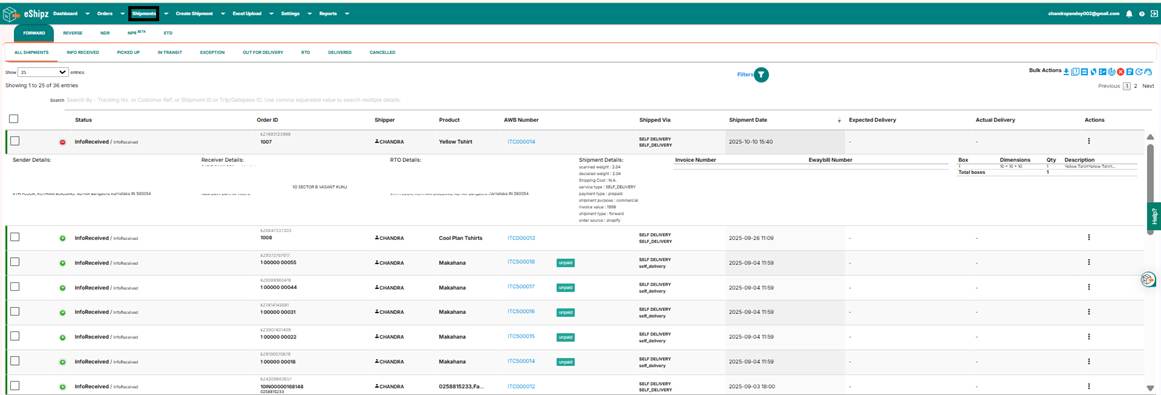

View Shipment Details

Steps:

1. Navigate to the Shipments tab.

2. Click on Forward to view the shipment details including weight and declared values.

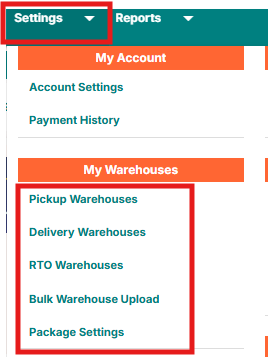

Add Warehouse Address

Steps:

1. Go to the Settings tab.

2. Select Pick-Up Warehouses.

3. Enter warehouse address and contact details.

4. Click Save to store the information.

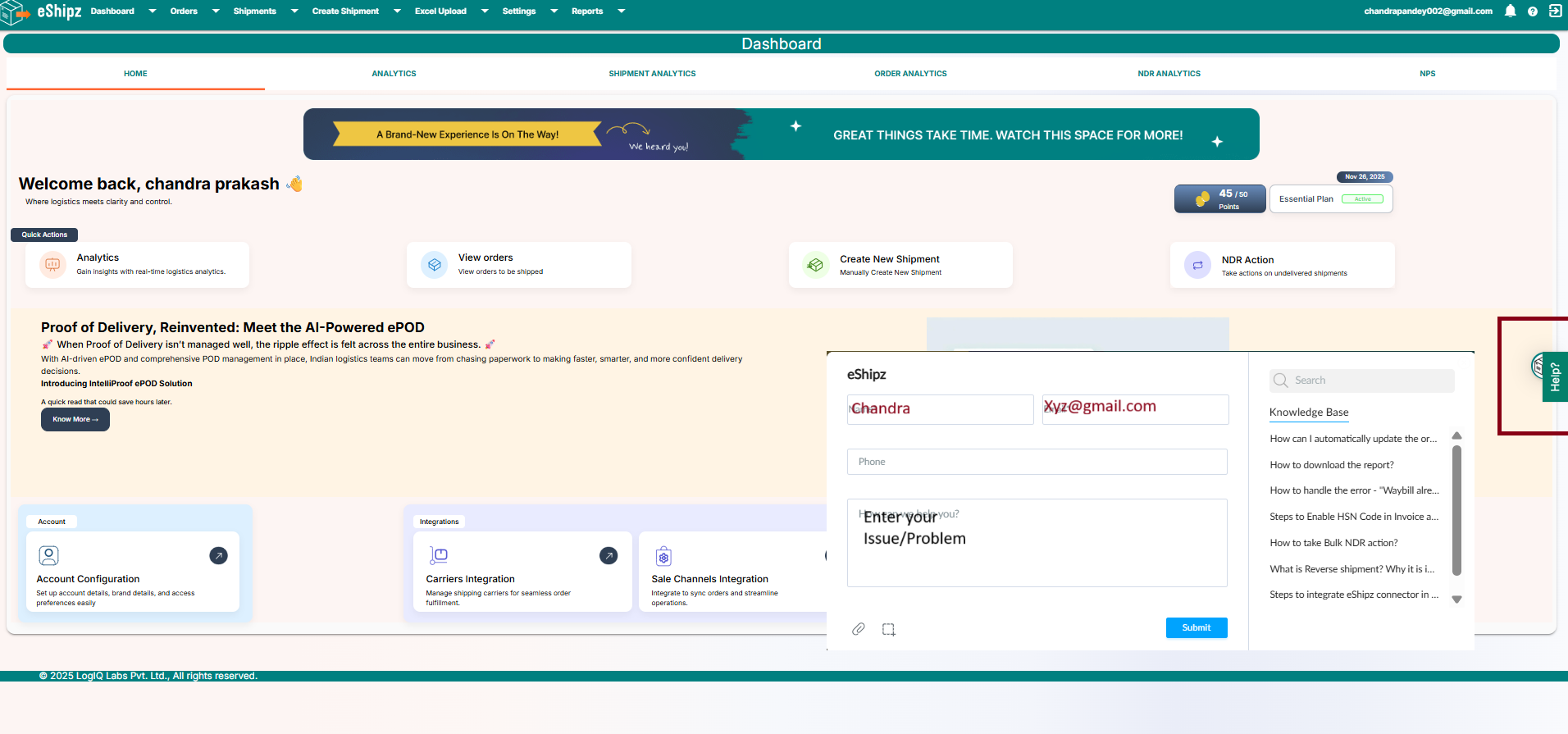

If you need help or encounter errors, send us an email at hello@eshipz.com as the support contact. Additionally you can create a ticket by your own Go to eShipz dashboard on right middle you will find

Help.
